Solibri 25.3.1 Release Notes

In this release we’ve focused on a few minor improvements:

Model Updating Improvements:
Settings (automatically/prompt) and manual updates now have separate dialogs. Batch assignment, path copying, and a clearer update prompt have been added.

Measurement Tool Enhancements:
New options to show/hide, copy, and remove measurements.

Clash Detection
Easier editing in the Clash Detection Matrix.

Classification:
New option to view spaces in Classifications in 2D or 3D.

Plus, we’ve improved overall performance — especially for the BCF Live Connector — and squashed several bugs.

Access the latest Solibri version 25.3.1 here by selecting Solibri Office and opting for the newest version. Please note that a Solibri Admin needs to assign the newest version in SSC. If you are an ECom user, download the latest version here.

Kind regards,
The whole team at Solibri

What’s new in Solibri Office v25.3.1?

Minor improvements

Model updating

We have made several improvements to model updating by separating Model Update Settings into one dialogue, and Update Models into another.

• Model Update Settings is used to select which models are updated Automatically and which are updated with a Prompt. If none of the checkboxes are selected, checking for updates needs to be done manually. Multiselect functionality was added for batch assigning the update settings. We’ve also added the possibility to copy model paths.


•

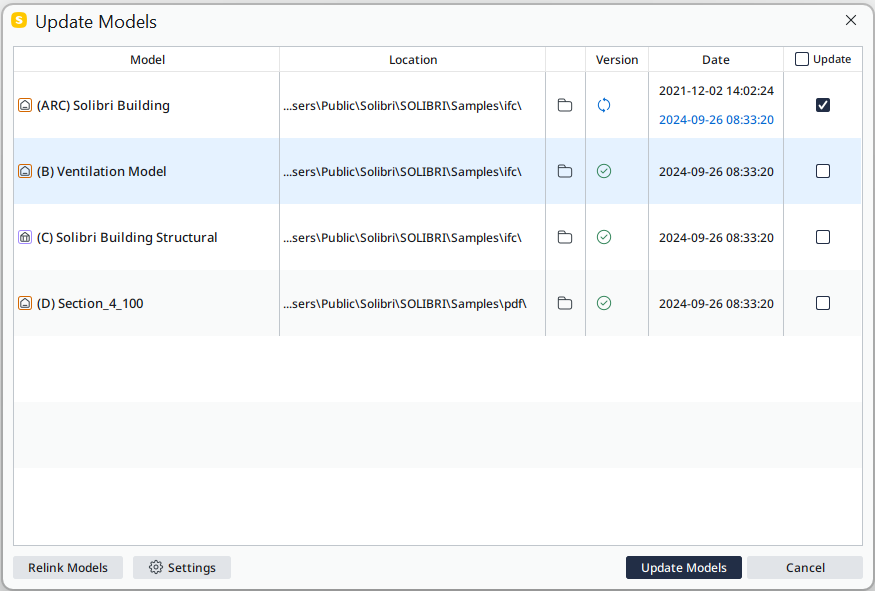

• Update Models is used to manually select and update on demand.
  The dialog indicates the current version, latest available version and clear indications whether files are up to date. There is also a direct link to the Model Update Settings dialogue to make further adjustments.


•

• The Model updates available prompt has been improved to be more visible. Moreover, clicking it will open a Update Models Dialog with selection of models to be updated. Users can unselect undesired models and proceed with the update.




Performance

• Significantly improved the performance with importing issues to BCF Live view
• Improved the performance of API visualizations which improves e.g. Clash Detection Matrix results visualization

Measurement tool

• Implemented a popup menu on Measurements View with options to Show/Hide, Copy/Copy With Value and Remove Measurements
• Implemented a button to hide and show all measurements at once
• Changed area measurement to be placed upon picked location

Clash Detection Matrix

• Improved the insert/remove/move columns and rows feature

Classification

• Added the possibility to view spaces in Classifications as 3D or 2D representations. This is now a checkbox in Classification Settings

Communication

• Added the possibility to create an empty Presentation. We’ve also added a Setting for this
• Added support for batch editing of Decision, Due Date and Stage

Bug fixes

BCF Live Connector

• Resolved an issue where comments were not saved to Trimble Connect when topic editing is not allowed due to user access rights

IFC related fixes

• Fixed an issue where large number values in extrusion geometry caused shaking in 3D rendering
• Fixed an issue where correction of bad IFC coordinate systems resulted components with wrong orientation
• Fixed an issue where openings were missing from components because of triangulation and polygonal errors
• Fixed an issue where IFC4 import failed because of missing GUIDs

Other bug fixes and small improvements:

• Fixed an issue where walk faster shortcut was not editable
• Fixed an issue where API Rule UI controls linked to a checkbox didn’t get enabled correctly
• Fixed an issue where measurement texts visualized by rules could not be hidden
• Fixed an issue where copy value from Measurements and ITO always had dot as decimal separator instead of comma
• Fixed an issue where model update was showing 1970 as date
